Namespace: PASI.ServiceContract
Assembly: PASI.ServiceContract (in PASI.ServiceContract.dll) Version: 9.25.26.0 (9.25.26.0)

Parameters

request

Type: PASI.DataContract.V2018SubmitPhoneNumberRequest
Contains the new phone number to attach to a student and the PhoneNumberId that should be corrected if that is the intention

Return Value

Type: SubmitResponse
The Id returned in this service will be the RefId of the phone number. If an additional phone number could not be added the Id will be returned as zero. The PASICoreVersion is the new version for the student.

Service Validations

The following codes can be returned from the service operation. This list also shows core alerts that could be generated as a result calling this service. These codes are in addition to the standard set of codes that can be returned defined as in the Approach to Error Reporting. Click the link for the details.

9002, 9006, 9010, 9011, 9014, 11251, 11252, 11253, 11254, 11255, 11256, 11257, 11261 This service will add a phone number to a student. If the intention is to correct a phone number that was entered incorrectly originally, the RefId property on the PhoneNumber should be set to the appropriate Id which will update the existing phone number instead of creating a new one.

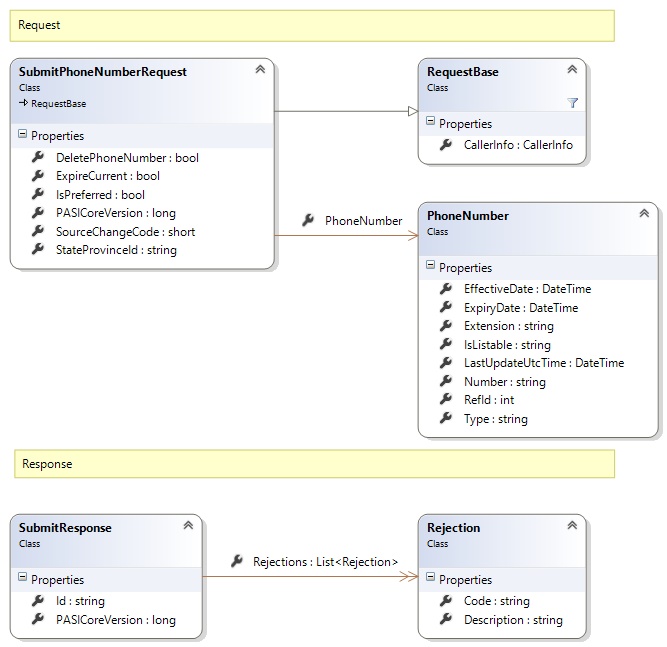

Request and Response Class Diagram

Request Fields

Full Property Name	Type	Required	Other Attributes
CallerInfo	CallerInfo	Yes
CallerInfo.ClientMessageID	String	Yes	Value must be no more than 50 characters Value must not have control characters, leading, trailing or multiple embedded spaces. Content must not match regular expression: ^\s|\s{2,}|\s$|[\x00-\x19]|[\x7F-\x9F]|[^\x00-\xFF]
CallerInfo.SentUtcTime	DateTime	Yes
CallerInfo.Software	Software	Yes
CallerInfo.Software.BuildNumber	String	Yes	Value must be no more than 30 characters Value must not have control characters, leading, trailing or multiple embedded spaces. Content must not match regular expression: ^\s|\s{2,}|\s$|[\x00-\x19]|[\x7F-\x9F]|[^\x00-\xFF]
CallerInfo.Software.Manufacturer	String	Yes	Value must be no more than 100 characters Value must not have control characters, leading, trailing or multiple embedded spaces. Content must not match regular expression: ^\s|\s{2,}|\s$|[\x00-\x19]|[\x7F-\x9F]|[^\x00-\xFF]
CallerInfo.Software.Product	String	Yes	Value must be no more than 100 characters Value must not have control characters, leading, trailing or multiple embedded spaces. Content must not match regular expression: ^\s|\s{2,}|\s$|[\x00-\x19]|[\x7F-\x9F]|[^\x00-\xFF]
CallerInfo.Software.Version	String	Yes	Value must be no more than 30 characters Value must not have control characters, leading, trailing or multiple embedded spaces. Content must not match regular expression: ^\s|\s{2,}|\s$|[\x00-\x19]|[\x7F-\x9F]|[^\x00-\xFF]
CallerInfo.User	User	Yes
CallerInfo.User.IPAddress	String	Yes	Value must be no more than 50 characters Value must not have control characters, leading, trailing or multiple embedded spaces. Content must not match regular expression: ^\s|\s{2,}|\s$|[\x00-\x19]|[\x7F-\x9F]|[^\x00-\xFF]
CallerInfo.User.LocalID	String	Yes	Value must be no more than 50 characters Value must not have control characters, leading, trailing or multiple embedded spaces. Content must not match regular expression: ^\s|\s{2,}|\s$|[\x00-\x19]|[\x7F-\x9F]|[^\x00-\xFF]
CallerInfo.User.Name	String	Yes	Value must be no more than 100 characters Value must not have control characters, leading, trailing or multiple embedded spaces. Content must not match regular expression: ^\s|\s{2,}|\s$|[\x00-\x19]|[\x7F-\x9F]|[^\x00-\xFF]
CallerInfo.User.OrganizationCode	String	Yes	Value must be no more than 6 characters
DeletePhoneNumber	Boolean	Yes
ExpireCurrent	Boolean	No
IsPreferred	Boolean	No
PASICoreVersion	Int64	Yes
PhoneNumber	PhoneNumber	Yes
PhoneNumber.EffectiveDate	DateTime	Yes
PhoneNumber.ExpiryDate	DateTime	No
PhoneNumber.Extension	String	No	Value must be no more than 7 characters
PhoneNumber.IsListable	String	Yes	Value must be one of (Y, N, U)
PhoneNumber.LastUpdateUtcTime	DateTime	No
PhoneNumber.Number	String	Yes	Value must be no more than 16 characters
PhoneNumber.RefId	Int32	Yes
PhoneNumber.Type	String	Yes	Value must be an appropriate PhoneType code value
SourceChangeCode	Int16	No
StateProvinceId	String	Yes	Value must be in the form of a number between '000000001' and '999999999'

Response Fields

Full Property Name	Type	Required	Other Attributes
SubmitResponse.Id	String	No
SubmitResponse.PASICoreVersion	Int64	No
SubmitResponse.Rejections	List<Rejection>	No
SubmitResponse.Rejections.Code	String	Yes
SubmitResponse.Rejections.Description	String	Yes
