This service will allow a PASI Client to request the list of Code Value Relationships between two related
CodeClasses.
Namespace: PASI.ServiceContract
Assembly: PASI.ServiceContract (in PASI.ServiceContract.dll) Version: 9.23.3.0 (9.23.3.0)
Syntax
CodeValueRelationshipsResponse GetCodeValueRelationships( CodeValueRelationshipsRequest request )
Parameters
- request
- Type: PASI.DataContract.V2020CodeValueRelationshipsRequest
The request contains details of the CodeClassNames for the relationship being defined.
Return Value
Type: CodeValueRelationshipsResponseThe response contains a list of code value CodeText relationships.
Service Validations
The following codes can be returned from the service operation. This list also shows core alerts that could be generated as a result calling this service. These codes are in addition to the standard set of codes that can be returned defined as in the Approach to Error Reporting. Click the link for the details.
No additional errors for this service.Remarks

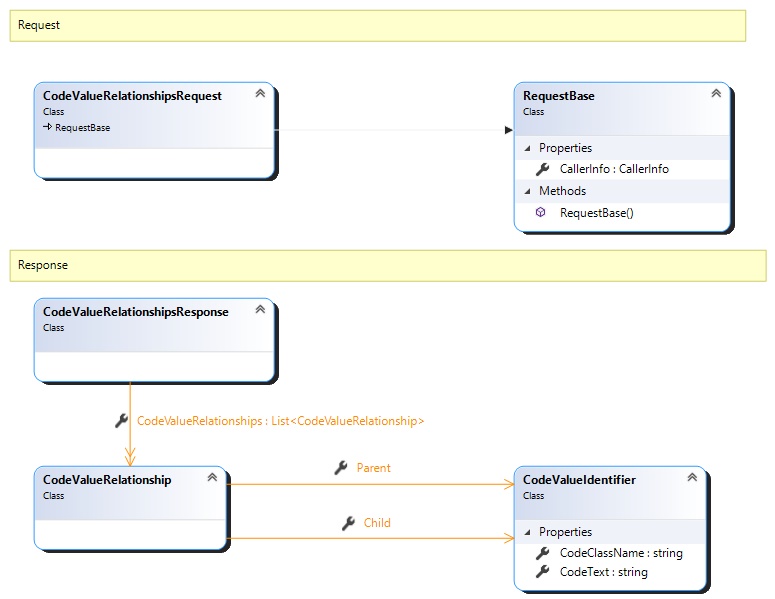

Request and Response Class Diagram
Request Fields
| Full Property Name | Type | Required | Other Attributes |
|---|---|---|---|
| CallerInfo | CallerInfo | Yes | |
| CallerInfo.ClientMessageID | String | Yes | Value must be no more than 50 characters Value must not have control characters, leading, trailing or multiple embedded spaces. Content must not match regular expression: ^\s|\s{2,}|\s$|[\x00-\x19]|[\x7F-\x9F]|[^\x00-\xFF] |
| CallerInfo.SentUtcTime | DateTime | Yes | |
| CallerInfo.Software | Software | Yes | |
| CallerInfo.Software.BuildNumber | String | Yes | Value must be no more than 30 characters Value must not have control characters, leading, trailing or multiple embedded spaces. Content must not match regular expression: ^\s|\s{2,}|\s$|[\x00-\x19]|[\x7F-\x9F]|[^\x00-\xFF] |
| CallerInfo.Software.Manufacturer | String | Yes | Value must be no more than 100 characters Value must not have control characters, leading, trailing or multiple embedded spaces. Content must not match regular expression: ^\s|\s{2,}|\s$|[\x00-\x19]|[\x7F-\x9F]|[^\x00-\xFF] |
| CallerInfo.Software.Product | String | Yes | Value must be no more than 100 characters Value must not have control characters, leading, trailing or multiple embedded spaces. Content must not match regular expression: ^\s|\s{2,}|\s$|[\x00-\x19]|[\x7F-\x9F]|[^\x00-\xFF] |
| CallerInfo.Software.Version | String | Yes | Value must be no more than 30 characters Value must not have control characters, leading, trailing or multiple embedded spaces. Content must not match regular expression: ^\s|\s{2,}|\s$|[\x00-\x19]|[\x7F-\x9F]|[^\x00-\xFF] |
| CallerInfo.User | User | Yes | |
| CallerInfo.User.IPAddress | String | Yes | Value must be no more than 50 characters Value must not have control characters, leading, trailing or multiple embedded spaces. Content must not match regular expression: ^\s|\s{2,}|\s$|[\x00-\x19]|[\x7F-\x9F]|[^\x00-\xFF] |
| CallerInfo.User.LocalID | String | Yes | Value must be no more than 50 characters Value must not have control characters, leading, trailing or multiple embedded spaces. Content must not match regular expression: ^\s|\s{2,}|\s$|[\x00-\x19]|[\x7F-\x9F]|[^\x00-\xFF] |
| CallerInfo.User.Name | String | Yes | Value must be no more than 100 characters Value must not have control characters, leading, trailing or multiple embedded spaces. Content must not match regular expression: ^\s|\s{2,}|\s$|[\x00-\x19]|[\x7F-\x9F]|[^\x00-\xFF] |
| CallerInfo.User.OrganizationCode | String | Yes | Value must be no more than 6 characters |
Response Fields
| Full Property Name | Type | Required | Other Attributes |
|---|---|---|---|
| CodeValueRelationshipsResponse.CodeValueRelationships | List<CodeValueRelationship> | Yes | |
| CodeValueRelationshipsResponse.CodeValueRelationships.Child | CodeValueIdentifier | Yes | |
| CodeValueRelationshipsResponse.CodeValueRelationships.Child.CodeClassName | String | Yes | |
| CodeValueRelationshipsResponse.CodeValueRelationships.Child.CodeText | String | Yes | |
| CodeValueRelationshipsResponse.CodeValueRelationships.Parent | CodeValueIdentifier | Yes | |
| CodeValueRelationshipsResponse.CodeValueRelationships.Parent.CodeClassName | String | Yes | |
| CodeValueRelationshipsResponse.CodeValueRelationships.Parent.CodeText | String | Yes |
