Namespace: PASI.ServiceContract
Assembly: PASI.ServiceContract (in PASI.ServiceContract.dll) Version: 9.25.26.0 (9.25.26.0)

Parameters

request

Type: PASI.DataContract.V201602SubmitDiplomaExamMarkRequest

Return Value

Type: MultipleSubmitResponse
The response contains a SubmitResponse for each Exam Mark that is submitted. If the submission is successful, the response will include the ReferenceID (Id) and PASICoreVersion. The Rejections property will identify any validation rules that have failed.

Service Validations

The following codes can be returned from the service operation. This list also shows core alerts that could be generated as a result calling this service. These codes are in addition to the standard set of codes that can be returned defined as in the Approach to Error Reporting. Click the link for the details.

9009, 9016, 9017, 9018, 9023, 9024, 9032, 9059, 9062, 9063, 40500, 40501, 40502, 40503, 40504, 40507, 40508, 40510, 40526, 40530, 40531, 40532, 40534, 40536, 40539, 40540, 40541, 40542, 40547, 40550, 40552, 40553, 40554, 40555, 40557, 40559, 40567, 62020, 62022, 62023, 62024 Each Exam Mark on the request will be processed individually, therefore some of the updates may be successful while others may fail.

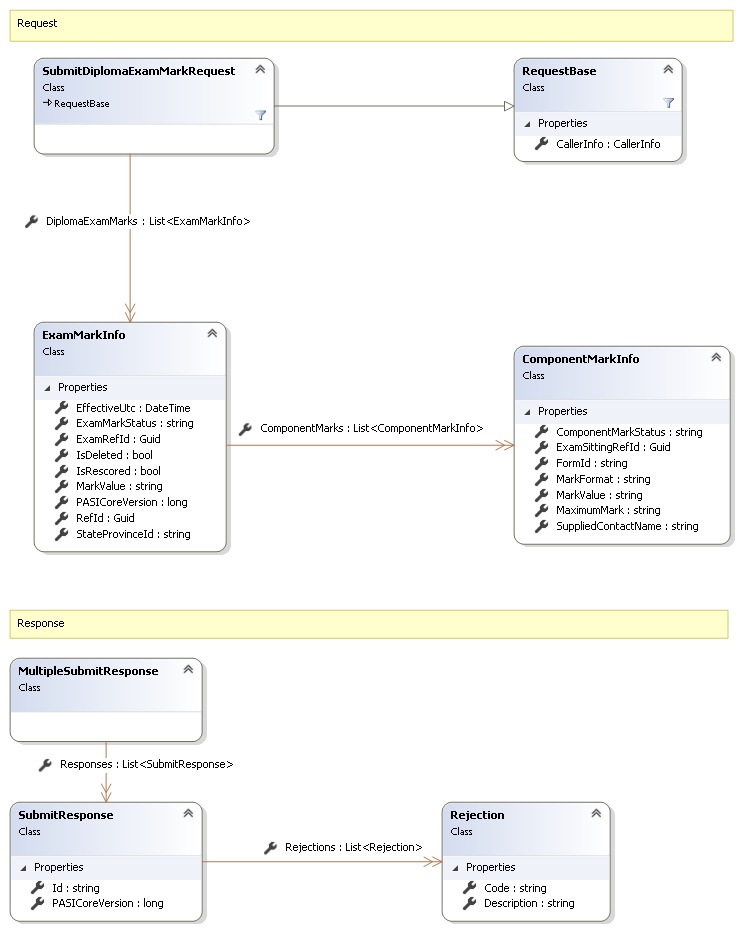

Request and Response Class Diagram

Request Fields

Full Property Name	Type	Required	Other Attributes
CallerInfo	CallerInfo	Yes
CallerInfo.ClientMessageID	String	Yes	Value must be no more than 50 characters Value must not have control characters, leading, trailing or multiple embedded spaces. Content must not match regular expression: ^\s|\s{2,}|\s$|[\x00-\x19]|[\x7F-\x9F]|[^\x00-\xFF]
CallerInfo.SentUtcTime	DateTime	Yes
CallerInfo.Software	Software	Yes
CallerInfo.Software.BuildNumber	String	Yes	Value must be no more than 30 characters Value must not have control characters, leading, trailing or multiple embedded spaces. Content must not match regular expression: ^\s|\s{2,}|\s$|[\x00-\x19]|[\x7F-\x9F]|[^\x00-\xFF]
CallerInfo.Software.Manufacturer	String	Yes	Value must be no more than 100 characters Value must not have control characters, leading, trailing or multiple embedded spaces. Content must not match regular expression: ^\s|\s{2,}|\s$|[\x00-\x19]|[\x7F-\x9F]|[^\x00-\xFF]
CallerInfo.Software.Product	String	Yes	Value must be no more than 100 characters Value must not have control characters, leading, trailing or multiple embedded spaces. Content must not match regular expression: ^\s|\s{2,}|\s$|[\x00-\x19]|[\x7F-\x9F]|[^\x00-\xFF]
CallerInfo.Software.Version	String	Yes	Value must be no more than 30 characters Value must not have control characters, leading, trailing or multiple embedded spaces. Content must not match regular expression: ^\s|\s{2,}|\s$|[\x00-\x19]|[\x7F-\x9F]|[^\x00-\xFF]
CallerInfo.User	User	Yes
CallerInfo.User.IPAddress	String	Yes	Value must be no more than 50 characters Value must not have control characters, leading, trailing or multiple embedded spaces. Content must not match regular expression: ^\s|\s{2,}|\s$|[\x00-\x19]|[\x7F-\x9F]|[^\x00-\xFF]
CallerInfo.User.LocalID	String	Yes	Value must be no more than 50 characters Value must not have control characters, leading, trailing or multiple embedded spaces. Content must not match regular expression: ^\s|\s{2,}|\s$|[\x00-\x19]|[\x7F-\x9F]|[^\x00-\xFF]
CallerInfo.User.Name	String	Yes	Value must be no more than 100 characters Value must not have control characters, leading, trailing or multiple embedded spaces. Content must not match regular expression: ^\s|\s{2,}|\s$|[\x00-\x19]|[\x7F-\x9F]|[^\x00-\xFF]
CallerInfo.User.OrganizationCode	String	Yes	Value must be no more than 6 characters
DiplomaExamMarks	List<ExamMarkInfo>	Yes
DiplomaExamMarks.ComponentMarks	List<ComponentMarkInfo>	Yes
DiplomaExamMarks.ComponentMarks.ComponentMarkStatus	String	Yes	Value must be an appropriate ComponentMarkStatus code value
DiplomaExamMarks.ComponentMarks.ExamSittingRefId	Guid	Yes
DiplomaExamMarks.ComponentMarks.FormId	String	No	Value must be no more than 6 characters Value must not have control characters, leading, trailing or multiple embedded spaces. Content must not match regular expression: ^\s|\s{2,}|\s$|[\x00-\x19]|[\x7F-\x9F]|[^\x00-\xFF]
DiplomaExamMarks.ComponentMarks.MarkFormat	String	No	Value must be an appropriate MarkFormat code value
DiplomaExamMarks.ComponentMarks.MarkValue	String	No	Value must be no more than 3 characters
DiplomaExamMarks.ComponentMarks.MaximumMark	String	No	Value must be no more than 3 characters Value must not have control characters, leading, trailing or multiple embedded spaces. Content must not match regular expression: ^\s|\s{2,}|\s$|[\x00-\x19]|[\x7F-\x9F]|[^\x00-\xFF]
DiplomaExamMarks.ComponentMarks.SuppliedContactName	String	No	Value must be no more than 120 characters
DiplomaExamMarks.EffectiveUtc	DateTime	No
DiplomaExamMarks.ExamMarkStatus	String	Yes	Value must be an appropriate ExamMarkStatus code value
DiplomaExamMarks.ExamRefId	Guid	Yes
DiplomaExamMarks.IsDeleted	Boolean	Yes
DiplomaExamMarks.IsRescored	Boolean	Yes
DiplomaExamMarks.MarkValue	String	No	Value must be no more than 3 characters
DiplomaExamMarks.PASICoreVersion	Int64	Yes
DiplomaExamMarks.RefId	Guid	Yes
DiplomaExamMarks.StateProvinceId	String	Yes	Value must be in the form of a number between '000000001' and '999999999'

Response Fields

Full Property Name	Type	Required	Other Attributes
MultipleSubmitResponse.Responses	List<SubmitResponse>	Yes
MultipleSubmitResponse.Responses.Id	String	No
MultipleSubmitResponse.Responses.PASICoreVersion	Int64	No
MultipleSubmitResponse.Responses.Rejections	List<Rejection>	No
MultipleSubmitResponse.Responses.Rejections.Code	String	Yes
MultipleSubmitResponse.Responses.Rejections.Description	String	Yes

Reference
